Description

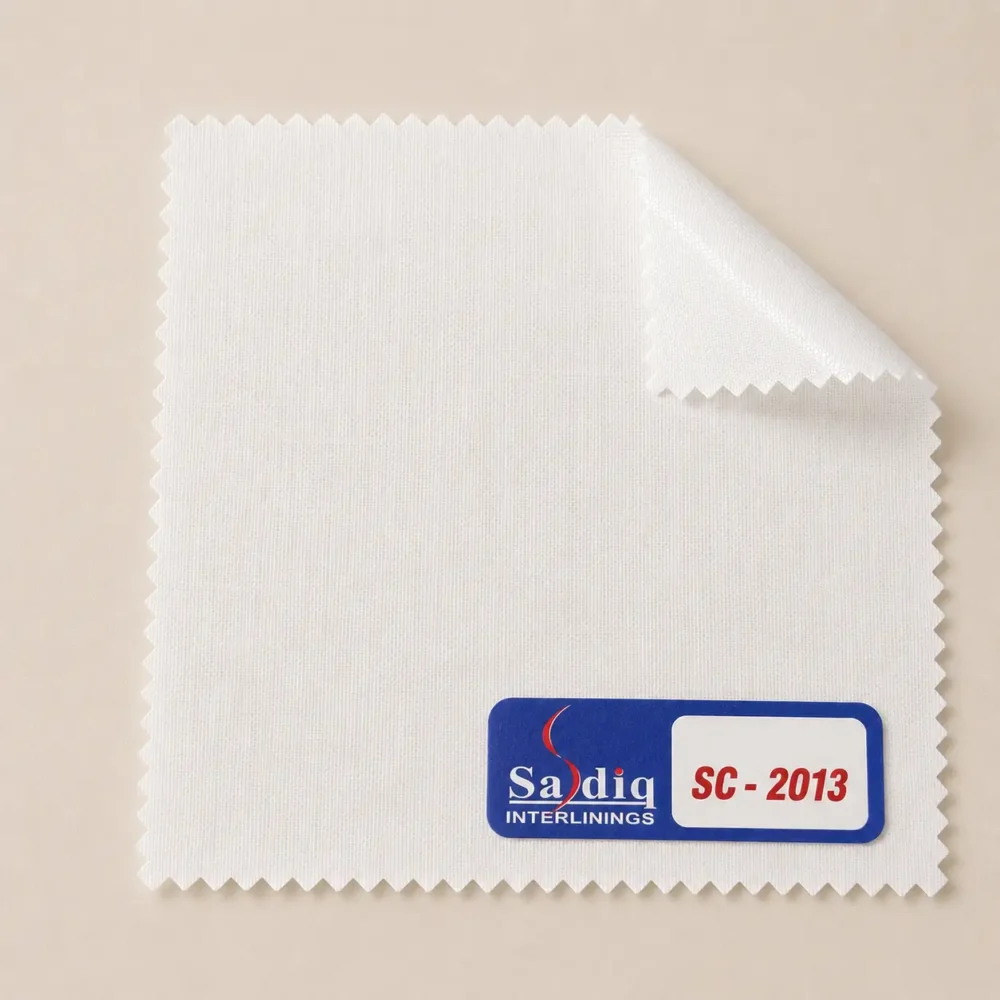

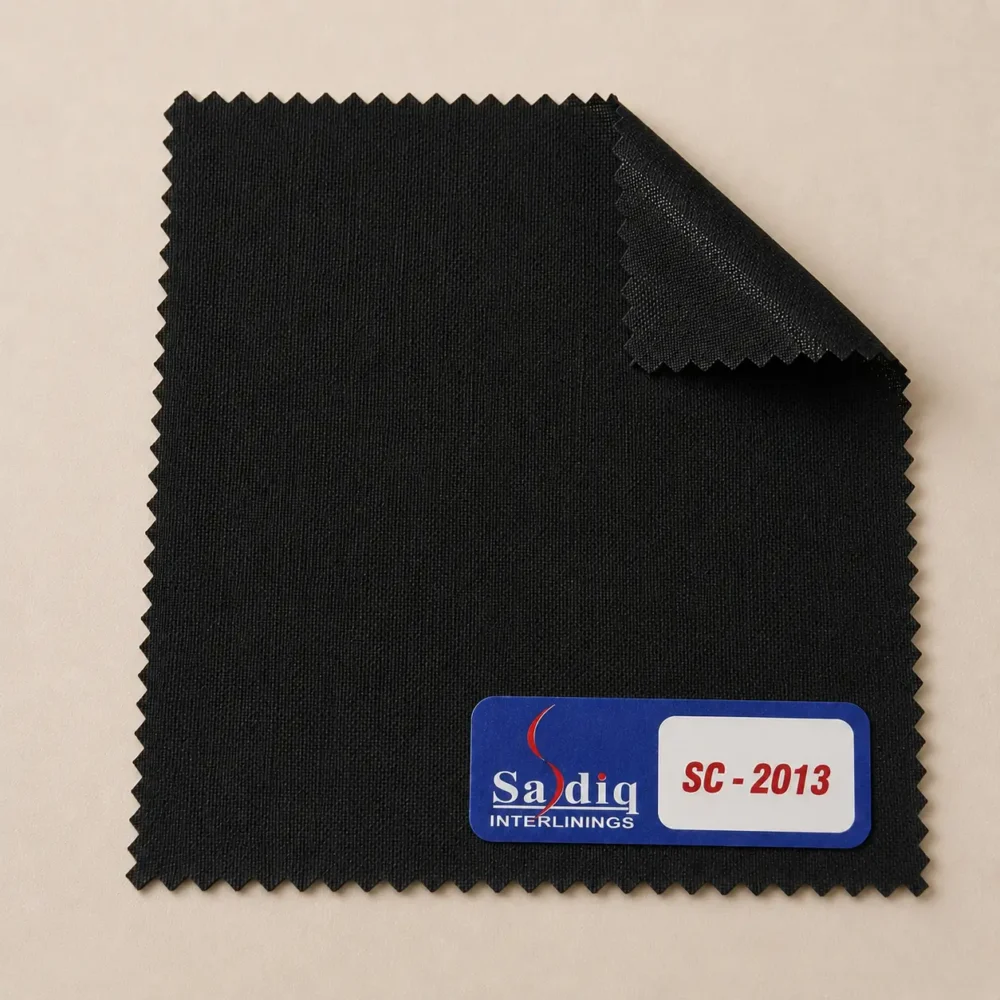

SC-2013 Woven Fusible Interlining
Sadiq Interlinings manufactures the premium SC-2013 Woven Fusible Interlining. As an ISO-9001 and OEKO-TEX certified interlining specialist based in Gujranwala, Punjab, we engineer this 200 GSM, hard-touch buckram fabric using a 100% pure cotton base. We design it with a tightly woven 20×20/60×60 construction and coat it with high-density polyethylene (HDPE) adhesive. Consequently, this product delivers a firm, highly structured finish to shirt collars, formal dress cuffs, and uniform components. We offer the SC-2013 in both 60-inch and 44-inch widths in White, Off-White, and Black to serve both local Pakistani garment factories and international export brands.
Whether you are a shirt manufacturer in Lahore or Faisalabad, a uniform supplier in Karachi, or an international buyer sourcing fusible interlining from Pakistan for export, the SC-2013 offers consistent GSM, reliable HDPE bonding strength. Furthermore, our 25 years of dedicated manufacturing experience back every roll. Please browse our complete range of Woven Fusible Interlinings (Buckram) or download our full Woven Fusible Interlinings Catalogue to compare the SC-2013 against our full GSM spectrum.
SC-2013 Technical Specifications
| Technical Property | SC-2013 Specification |
| Article Code | SC-2013 |
| Construction | 20 × 20 / 60 × 60 (Warp × Weft / Thread Count) |
| Base Fabric | 100% Pure Cotton |
| GSM (Weight) | 200 GSM |
| Coating Type | HDPE (High-Density Polyethylene) — Flat Coating |
| Finish | Hard Touch |
| Available Widths | 60 Inches | 44 Inches |

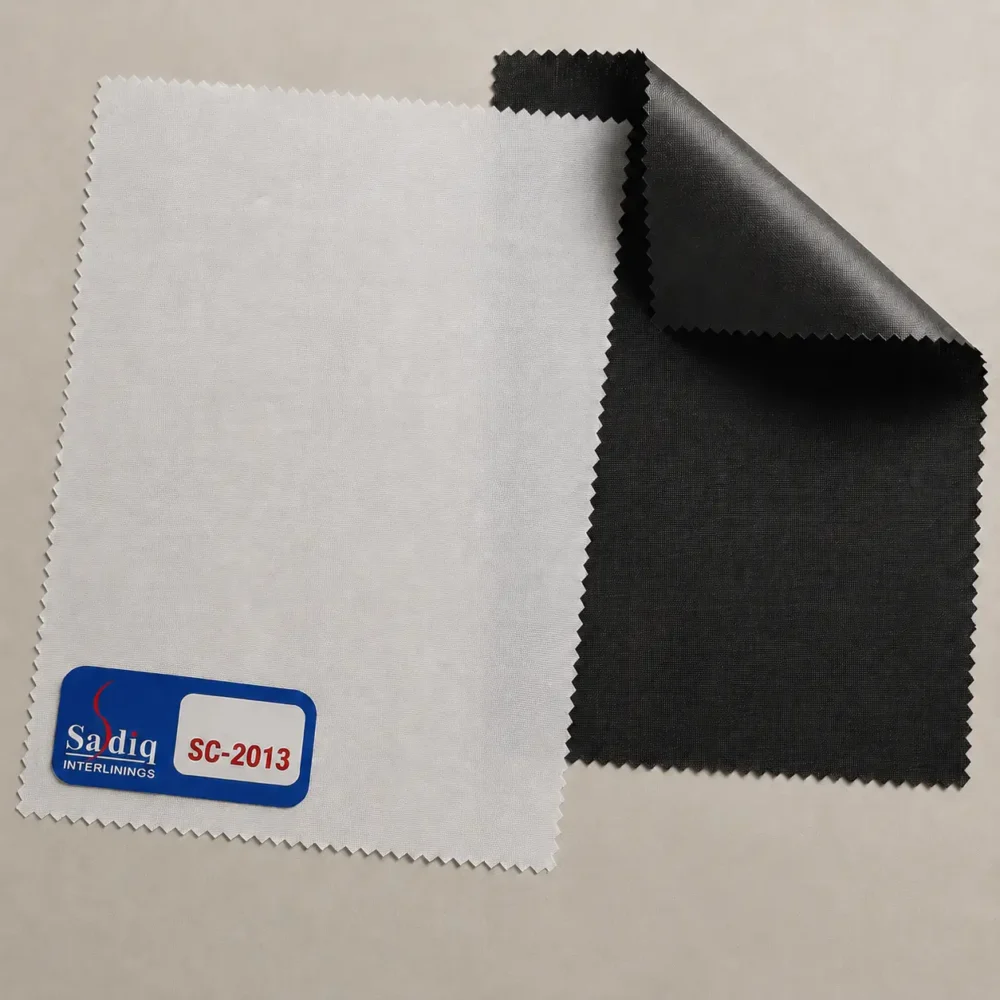

| Available Colours | White | Off-White | Black |
| Fusing Temperature | 160°C – 175°C |
| Pressure | 3.0 – 3.5 kg/cm² |
| Dwell Time | 15 – 20 seconds |
| Shrinkage Control | < 1.5% (Warp & Weft) |
| Wash Resistance | Industrial Washable | Dry Clean Resistant |
| Certifications | ISO-9001 | OEKO-TEX Standard 100 |
| Country of Origin | Pakistan (Manufactured in Gujranwala, Punjab) |
| SKU | SC-2013 |
| Category | Woven Fusible Interlining (Buckram) |
What Is the SC-2013 Woven Fusible Interlining?
The SC-2013 belongs to the woven fusible interlining family — also known in the trade as buckram fabric — which is a tightly woven textile substrate coated on one face with a heat-activated thermoplastic adhesive. Unlike non-woven interlinings that are bonded chemically or thermally from loose fibres, the SC-2013’s woven base delivers superior dimensional stability, tensile strength, and uniformity across the roll width. Accordingly, it stands as the preferred choice for structured garment applications where shape retention remains critical.
At 200 GSM with a hard touch finish, the SC-2013 occupies the mid-to-heavy end of Sadiq Interlinings’ woven range. This specific GSM and finish combination is the industry’s benchmark specification for formal dress shirt collars and stiff cuffs. In fact, these specific areas demand the highest quality because any delamination or bubbling will immediately ruin a finished garment. The construction notation 20×20/60×60 describes a 20-count warp and weft yarn woven at 60 threads per inch in both directions, producing a balanced, tightly interlocked weave structure that distributes stress evenly under fusing press conditions.
The HDPE adhesive coating used on the SC-2013 activates at 160–175°C — the optimal range for bonding to cotton and poly-cotton shirt fabrics without adhesive strike-through. HDPE-based coatings are specifically chosen for garment interlinings because they offer higher bond strength at lower fusing temperatures compared to standard PA (Polyamide) coatings. In addition, they maintain that bond through repeated industrial washing cycles and commercial dry cleaning without delamination. This is a critical quality differentiator that sets Pakistan-manufactured Sadiq SC-2013 apart from cheaper imported alternatives that use lower-grade adhesive powders.
Learn more about how Sadiq Interlinings manufactures its full woven range on our About page and take a virtual tour of our production facility on our Company page.
Primary Applications of SC-2013
The SC-2013 is designed to deliver consistent performance across a wide range of garment manufacturing applications. Its 200 GSM hard touch specification makes it the right choice wherever a firm, structured, shape-retaining interlining is required without reaching into the extreme stiffness territory of buckram grades above 280 GSM.
Formal Shirt Collars (The Core Application)
The most significant application of the SC-2013 is as a shirt collar interlining for formal and semi-formal dress shirts. At 200 GSM hard touch, the SC-2013 provides the rigid backbone that keeps a shirt collar standing upright, holding its shape through a full working day. Given that Pakistan’s garment export industry produces tens of millions of dress shirts annually for markets in the UK, USA, Middle East, and Europe — and collar interlining quality is a non-negotiable element of export-grade shirt production. The SC-2013’s HDPE coating ensures that the collar retains its crispness even after the shirt has been washed and pressed repeatedly.
Dress Shirt Cuffs and Plackets
Beyond the collar, the SC-2013 is widely used for cuff interlining in formal shirts and institutional uniforms. The 200 GSM hard finish delivers the stiff, sharp-edged cuff profile associated with premium shirting. Meanwhile, the HDPE bond ensures that the interlining does not separate from the outer fabric over the lifetime of the garment. Some manufacturers also apply the SC-2013 in placket bands for button-through openings on formal shirts, where controlled stiffness prevents buckling around button holes.
Corporate Uniforms and Institutional Garments
Corporate uniform manufacturers throughout Pakistan — particularly in Lahore, Karachi, Sialkot, and Gujranwala — use the SC-2013 for uniform shirt collars, security guard shirts, airline crew uniforms, and hospitality garments. These applications demand consistent interlining quality across high-volume production runs. Because the SC-2013 is manufactured under ISO-9001 quality management protocols, batch-to-batch GSM consistency is maintained, meaning uniform manufacturers can trust that collar 1 and collar 10,000 will carry identical stiffness and appearance.
Global Export Garment Manufacturing
International buyers sourcing fusible interlining from Pakistan for their own garment manufacturing operations will find the SC-2013 competitive on both price and specification against Chinese alternatives. The 100% cotton base makes it compatible with a wider range of outer shell fabrics than polyester-base interlinings, particularly for natural fibre shirts (100% cotton, cotton-linen blends) where dimensional compatibility under heat and washing is critical. Container-load export orders are handled directly from Sadiq Interlinings’ facility on Sheikhupura Road, Gujranwala.
Explore our complete apparel interlining product family: Non-Woven Fusible Interlinings | Chemical Bonded Interlinings | Thermal Bonded / Double Dot Interlinings | Embroidery Backings | Spun Bond Non-Woven Fabrics.
Why SC-2013 –What Garment Manufacturers Gain
Choosing the wrong interlining costs more than the price of the fabric. Delamination complaints, uneven collar stiffness across a production run, interlining shrinkage that causes collar distortion after washing — these are production defects that reach finished garments and damage your buyer relationships. The SC-2013 is engineered to eliminate these failure modes.
1. Certified Quality That Protects Your Production
Every roll of SC-2013 is produced under ISO-9001:2015 certified quality management and OEKO-TEX Standard 100 certified processes — meaning no harmful substances, consistent specifications, and traceable quality at every stage. For garment manufacturers supplying to European or North American brands, OEKO-TEX certification on your interlining is often a mandatory supplier requirement. The SC-2013 satisfies it from the point of manufacture in Pakistan, eliminating the need for separate interlining certification by the garment factory.
2. Dimensional Stability Below 1.5% Shrinkage
The SC-2013’s tightly woven 20×20/60×60 construction delivers warp and weft shrinkage consistently below 1.5% after washing. This is the critical specification that determines whether a fused shirt collar stays flat and symmetrical or develops a rippled, distorted appearance after the first laundry cycle. Cotton-based woven interlinings offer superior dimensional stability compared to non-woven alternatives at equivalent GSM levels — and the SC-2013’s tight thread count amplifies this advantage.
3. Hard Touch Finish (The Right Stiffness for Formal Shirting)
Not all hard touch interlinings are the same. The SC-2013’s hard finish is calibrated for formal dress shirt production — firm enough to hold a standing collar profile through a working day, but not so rigid that it creates discomfort or prevents natural collar roll at the fold. If your application requires a softer finish for casual shirts or a stiffer finish for industrial bag linings, Sadiq Interlinings offers a full GSM and finish spectrum from 110 GSM soft touch up to 385 GSM ultra hard — browse our complete Woven Fusible Interlinings range to find your exact specification.
4. HDPE Coating (Bond Strength That Outlasts the Garment)
The SC-2013 uses pure HDPE (High-Density Polyethylene) flat coating — a premium coating technology chosen for garment-grade woven interlinings because it produces a stronger, cleaner bond at controlled fusing temperatures compared to PA or LDPE alternatives. The HDPE coating on the SC-2013:
- Activates cleanly between 160°C and 175°C without adhesive bleed-through into the outer fabric
- Withstands industrial washing at temperatures up to 60°C without delamination
- Resists commercial dry cleaning solvents
- Does not re-melt during steam pressing at normal ironing temperatures after initial fusing
- Maintains bond integrity through garment lifetime under normal wear conditions
5. German and Swiss Machinery (Precision Manufacturing)
Sadiq Interlinings produces the SC-2013 on advanced coating and finishing machinery sourced from Germany and Switzerland — the same equipment benchmark used by leading European interlining manufacturers. This machinery enables precise HDPE coating weight control across the full roll width, ensuring that the coating density is uniform from selvedge to selvedge and roll-to-roll. For garment manufacturers, this translates into consistent fusing results across every metre of every batch — eliminating the patchy bonding that is a common complaint with lower-grade interlining from commodity suppliers.
6. Local Manufacturing (Faster Supply, Local Currency, No Import Duty)
For Pakistani garment manufacturers, sourcing interlining from Sadiq Interlinings means zero import duty, local currency transactions, shorter lead times, and direct access to technical support from our sales team in Gujranwala. Chinese interlining alternatives may offer competitive FOB pricing, but after adding import duty, freight, insurance, and a 15–30 day sea freight lead time, the total landed cost and operational risk consistently favour Pakistan-manufactured Sadiq interlinings for local buyers.
To understand Sadiq Interlinings’ full manufacturing background, certifications, and production capacity, visit our About Us page.
SC-2013 in Pakistan’s Garment Manufacturing Hubs
Pakistan’s apparel manufacturing industry is clustered across several major production centres, and the SC-2013 serves manufacturers in each of them:
Faisalabad — Pakistan’s Textile Capital
Faisalabad is home to Pakistan’s highest concentration of fabric mills and garment units. Shirt manufacturers and uniform producers in Faisalabad rely on consistent interlining supply for high-volume production runs. The SC-2013’s roll-to-roll consistency and ISO-certified quality make it a natural specification choice for Faisalabad’s export-focused shirt factories, many of which supply UK, European, and Middle Eastern buying houses with strict quality requirements.
Lahore — Formal Wear and Corporate Uniform Manufacturing
Lahore’s garment sector is strong in formal wear, corporate uniforms, and branded shirt manufacturing. The 200 GSM hard touch SC-2013 is specifically suited to this market segment. Lahore-based garment manufacturers benefit from Sadiq Interlinings’ proximity in Gujranwala — just 75 km from Lahore — enabling same-day or next-day supply for urgent production requirements and eliminating the import logistics burden associated with Chinese or Bangladeshi interlining alternatives.
Karachi — Export Garment Production and Port Access
Karachi is Pakistan’s largest port city and the hub of its export garment industry. Manufacturers producing for export from Karachi need interlining suppliers that can guarantee consistent quality at container scale. Sadiq Interlinings supplies container-load wholesale interlining fabric to Karachi buyers and can coordinate shipment directly to Port Qasim or Karachi Port for further export integration into buyer-organised logistics.
Sialkot — Sportswear and Specialist Apparel
Sialkot’s manufacturers, known globally for sportswear and specialist apparel, use interlining in structured garment components including collar bands, waistbands, and utility garment elements. The SC-2013’s hard touch HDPE finish provides the durability these applications require, and the 100% cotton base ensures compatibility with the natural-fibre outer fabrics common in Sialkot’s premium export product lines.
Gujranwala — Direct from Factory
Gujranwala’s own garment and accessories sector sources the SC-2013 directly from Sadiq Interlinings’ manufacturing facility on Sheikhupura Road — behind the Sui Gas Transmission office — the shortest possible supply chain for local units. Contact our team to arrange a factory visit, sample collection, or bulk order discussion.
SC-2013 — Export Markets and Global Availability
Sadiq Interlinings exports the SC-2013 and our full woven fusible interlining range to international buyers across multiple continents. Pakistan’s competitive manufacturing cost structure, combined with Sadiq’s ISO-9001 quality assurance and OEKO-TEX certification, makes the SC-2013 a competitive alternative to Chinese or Bangladeshi interlinings for global buyers who want certified quality with flexible MOQ at export-grade pricing.
Active export markets include:
- Middle East: UAE, Saudi Arabia, Qatar, Kuwait, Jordan — uniform manufacturers, branded fashion retailers, and garment factories supplying regional chains
- South Asia: Bangladesh and Sri Lanka for integrated garment manufacturers who source interlining separately from their fabric supply chain
- Africa: Nigeria, Kenya, Ethiopia — emerging garment export sectors where Pakistan-origin certified interlining is competitively priced vs Chinese alternatives
- UK and Europe: Buying houses and garment agents sourcing OEKO-TEX compliant interlining for European market-bound apparel production
- USA and Canada: Niche formal wear and uniform manufacturers who specify cotton-base interlinings for natural fibre garment production
To place an export inquiry, request technical specifications, or discuss container-load pricing, visit our Contact page or download our Woven Fusible Interlinings Catalogue for the complete product range.
SC-2013 vs Other Sadiq Woven Fusible Interlinings — Choosing the Right Grade
Sadiq Interlinings produces woven fusible interlinings across a broad GSM spectrum. Understanding where the SC-2013 sits in that range helps you select the right product for your specific application:
| Article Code | Material Specs (GSM / Fabric) | Target Finish Profile | Primary Garment Application (Pakistani & Export Markets) | Explicit Non-Applications (What It Is Not Used For) |
|---|---|---|---|---|
| ★ SC-2013 (This Product) | 200 GSM / 100% Cotton | Hard Touch | High-end formal dress shirt collars and stiff cuffs. Corporate and institutional uniform standing collar bands, also known as Ban. | Not for fluid, unstructured casual apparel panels. |
| SC-2016 / SC-2018 | 202 GSM / 100% Cotton | Medium Hard / Hard Touch | Premium export-grade formal shirting requiring high warp and weft stability. Traditional men’s ethnic wear front plackets, also known as Patti. | Not for soft-wash casual wear or unstructured blouses. |
| SC-6201 LENO | 209 GSM / 100% Cotton | Heavy Hard Touch | Maximum structural reinforcement for heavy standing collars in traditional bridal and formal wear. Heavy military and security service uniform cuffs. | Not for delicate cotton lawns or summer-weight fabrics. |
| SC-2020 WINNER | 190 GSM / 100% Cotton | Light-Mid Hard Touch | Mid-weight dress shirt construction. Structural crispness for blended cotton-poly kurtas and domestic stitched brands. | Not for ultra-soft draping finishes. |
| SC-2025 / SC-2026 | 170 GSM / 100% Cotton | Super Soft / Medium Soft | Lightweight summer garments, casual shirt plackets and dynamic facings. Soft structural support for delicate lawn clothing. | Not for crisp, upright standing formal collars or uniform cuffs. |
| SC-2022 | 200 GSM / Poly + Cotton | Multi-Finish | Specialized synthetic or blended fabric compliance. Blended menswear textiles requiring specific shrinkage alignment. | Not recommended for pure 100% organic cotton luxury lines. |
| SC-2024 EAGLE | 150 GSM / 100% Cotton | Light Soft Touch | Ultra-light garment stabilization. Inner linings for sheer, delicate fabrics to prevent distortion without adding bulk. | Completely unsuitable for heavy structural collar or cuff backing. |
| DC-2030 | 385 GSM / 100% Cotton | Heavy-Duty Apparel Stiffener | Heavy trouser waistband stabilizers to prevent roll-down under belts. Load-bearing button plackets on heavy utility jackets and industrial overalls. | Strictly not for semi-rigid hardware alternatives such as baseball cap brims, sun visors or rigid luggage frames. |
Browse our complete woven range on the Woven Fusible Interlining (Buckram) product page or view the full visual catalogue on our Woven Fusible Interlinings Catalog page.
How to Fuse the SC-2013 — Technical Guide for Garment Manufacturers
Correct fusing technique is as important as the interlining specification itself. Even the best 200 GSM HDPE interlining will delaminate if the fusing parameters are incorrect. Follow these guidelines for optimal results with the SC-2013:
- Temperature: Set your fusing press at 160°C to 175°C. Below 160°C the HDPE adhesive will not fully activate; above 180°C you risk adhesive bleed-through into the outer fabric.
- Pressure: Apply 3.0 to 3.5 kg/cm². Insufficient pressure produces poor adhesion across the interlining area; excessive pressure can compress the weave structure and alter the hand feel.
- Dwell Time: 15 to 20 seconds. This dwell time allows full adhesive penetration and bonding before the bonded assembly cools under controlled pressure.
- Cooling: Always allow fused panels to cool flat under light pressure before handling. Peeling or folding the fused assembly while hot will distort the bond before it sets.
- Pre-Test: Before committing to full production, conduct a small adhesion test on a sample of your specific outer fabric. Different fabric weights and weave structures may require minor temperature or pressure adjustment within the stated range.
If you need technical guidance beyond this guide, contact our team and we will provide application-specific fusing recommendations for your fabric and garment type.
Frequently Asked Questions — SC-2013 Woven Fusible Interlining
The notation 20×20/60×60 describes the yarn and weave structure of the SC-2013’s cotton base fabric. The first pair, 20×20, refers to the yarn count — 20-count cotton yarn used in both warp and weft directions. The second pair, 60×60, refers to the thread density — 60 threads per inch in both the warp and weft directions. This is a medium-weight tightly woven structure that delivers the balanced strength, dimensional stability, and smooth surface finish required for a high-quality shirt collar interlining.
The SC-2013 is a woven interlining designed for woven outer fabrics such as cotton poplin, poly-cotton broadcloth, and oxford weave shirt fabrics. It is not recommended for stretch, jersey, or knit outer fabrics because the woven structure does not accommodate the dimensional movement of stretch fabrics under wear. For stretch garment applications, Sadiq Interlinings’ Non-Woven Fusible Interlinings range offers better compatibility.
Yes. The SC-2013 is available in both 44-inch and 60-inch roll widths. The 60-inch width gives cutting efficiency advantages for wide-body shirt collar and cuff cutting patterns, reducing fabric waste. The 44-inch width suits narrower cutting setups or manual cutting operations. Specify your required width when placing your order or sample request.
Minimum order quantities depend on order type and destination. For local Pakistan buyers, our team can accommodate flexible MOQ options for sampling and initial trial orders. For international export orders, standard container-load volumes apply. Contact our sales team to discuss MOQ, pricing, and lead times for your specific requirement.
Yes. Sadiq Interlinings manufactures under OEKO-TEX Standard 100 certified processes, which certifies that our products are free from harmful substances and safe for direct skin contact. This certification covers the SC-2013 and our full manufacturing range, and is an important compliance requirement for garment exporters supplying European and North American retail markets.
Chinese 200 GSM woven interlinings on Alibaba and similar platforms are often priced lower at FOB but involve 3,000–5,000 metre minimum orders, 15–30 day sea freight, import duty into Pakistan, and limited post-sale technical support. Sadiq Interlinings’ SC-2013 offers comparable or superior technical specifications including ISO-9001 and OEKO-TEX certified manufacturing, HDPE coating, and 20×20/60×60 construction. It also offers shorter lead times, local currency pricing, zero import duty for Pakistan buyers, and direct technical support from our Gujranwala facility. For international buyers, our Pakistan-origin pricing is competitive once total landed cost is calculated against Chinese alternatives including freight and duty.
Where can I see the full Sadiq Interlinings product range?
The complete product range is available on our Products page, with dedicated pages for Woven Fusible Interlinings, Non-Woven Fusible Interlinings, Embroidery Backings, and Spun Bond Non-Woven Fabrics. Download catalogues on our Catalog page or contact us to request a physical sample pack.
Explore Related Woven Fusible Interlinings
If the SC-2013 does not match your exact GSM or finish requirement, explore these closely related products in our woven range:
Can’t find the exact specification? Visit our full Woven Fusible Interlinings range or contact our team for custom GSM and finish development.
Request a Free Sample of SC-2013
Sadiq Interlinings offers free samples of the SC-2013 for qualified garment manufacturers and international buyers. Test the SC-2013 in your own production line — fuse it on your collar fabric, wash it, press it, and confirm that it meets your specification before placing a bulk order.
To request a sample or obtain a bulk price quote:
- Fill out our online Contact & Enquiry form
- Call us at +92-055-4443767 or +92-055-4442337
- Email: info@sadiqinterlining.com
- Visit our factory: Behind Sui Gas Transmission office, Sheikhupura Road, Gujranwala, Punjab, Pakistan
Learn more about Sadiq Interlinings, take a virtual company tour, or return to the Sadiq Interlinings homepage
